Moser's Circle Problem
Why patterns are not reliable problem solvers
Today’s problem involves you drawing circles on a piece of paper one boring, rainy Sunday evening.
The question you pose is simple.
Draw N points on the circumference of the circle.
Connect every point to every other point by a straight line
Ensure that every intersection in the circle must be one of exactly 2 lines. If 3 or more lines intersect at the same point, re-start.
Once you are done with this process, how many regions have you cut the circle into?
Dear reader,
Thank you for supporting Elucidate: for the curious coder. These next few weeks are going to be busy, so expect the length of articles to reduce for a short while.
It’s hard work writing alone. I appreciate all support for my writing. Please consider pledging your financial support- I ask for less than 2 cups of coffee a month, and in return you get a new brain-boosting problem solving adventure every week.
Subscribe or pledge your support here
At the end of these few weeks, I’ll release a much longer article that will be an enjoyable read. Till then, all help is much appreciated.
Solving the problem
There’s a cool pattern you’ll notice.
When N = 2, you draw a single straight line in the circle. You cut it into 2 regions.

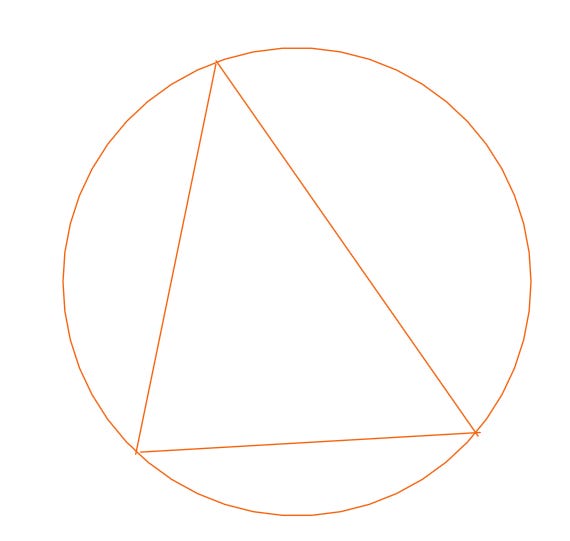

When N = 3, you draw a triangle in the circle, cutting it into 4 regions.
When N = 4, you cut it into 8 regions.
When N = 5, you cut it into 16 regions.
It seems like a simple pattern. Just consecutive powers of 2, right? So, what happens when N = 6?

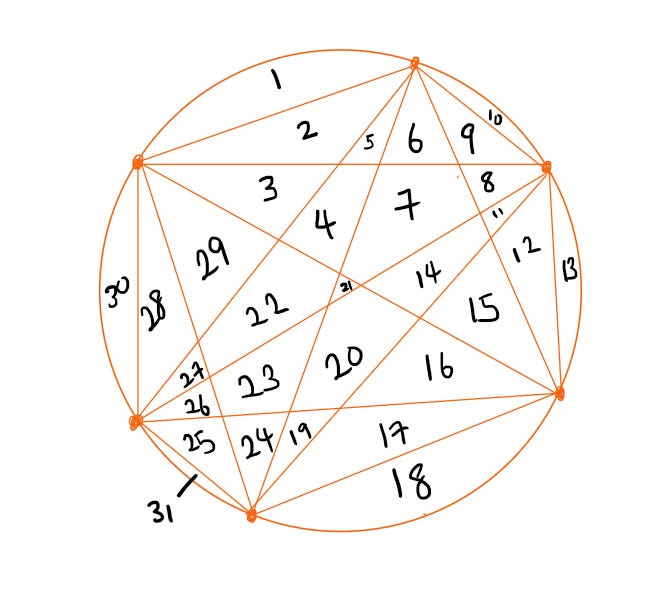

Just shy! It’s only 31 parts. So, what happened?
Euler’s formula
At first, though this may not look like it, this is a graphical problem, not just a geometrical problem. Solving it involves a mathematical trick that we can use. And this is Euler’s formula.
First, we need to define a planar graph.
A planar graph is one where none of the edges intersect one another when the graph is laid out on a 2-d plane.
Now let’s create 3 variables to represent a planar graph.
Let V be the number of vertices in the graph
Let E be the number of edges in the graph
Let F be the number of regions in the graph
We can make 2 important observations about planar graphs.
Think about what happens when you add another edge to a planar graph.
If you add an edge to a planar graph that connects an existing vertex to another existing vertex then the number of edges increases by one, as does the number of regions in the graph. Since both E and F increase by 1, F-E remains a constant.
If you add an edge to a planar graph that connects an existing vertex to a new vertex, the number of vertices increases by 1. The number of edges also increases by 1. The number of regions you have created does not change. Since both V and E increase by 1, V-E remains constant.
Consider now the expression V + F - E. If you increase V by 1, you increase E by 1. If you increase F by 1, you increase E by 1. So the V+F-E remains unchanged.
Since this value is a constant for all planar graphs, we can use the above graph as an an example.
V = 4
E = 4
F = 1
V+F-E = 4 + 1 - 4 = 1
This gives us an important equation to work with from now on.
In the final graph, we want to find F. So, we can re-write this equation.
Now we need to find V and E in our circle.
Number of vertices
In order to treat our circle as a planar graph, we need to treat every intersection between 2 lines as a vertex of its own. That way, we know no edges intersect, and the graph is planar.
Now, we need to make a claim and prove it.
Claim: For any set of 4 points on the circumference of the circle, they have exactly 1 intersection, and that intersection is unique.
Proof:
Consider some 4 points.
If we draw every possible line connecting 2 of these 4 points, exactly 2 of these lines will ever intersect (the 2 diagonals). And since no point is the intersection of more than 2 lines, as defined in the problem statement, any 4 pairs of points has a unique intersection in the circle. That ends the proof.

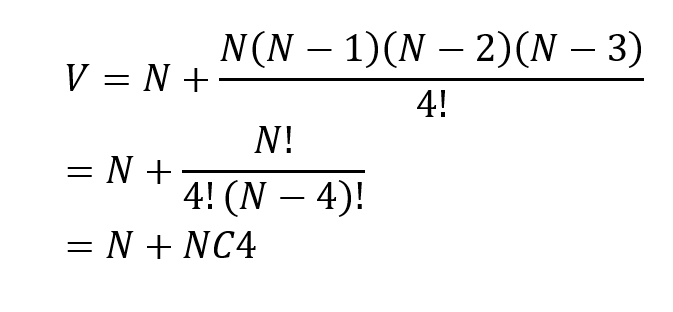

Therefore, the number of vertices in the circle is equal to the N vertices on the circumference plus every intersection between 2 lines. Since every point is connected to every other point, the number of intersections is the number of sets of 4 points. How do we do this?
